Computer on Module
The Perfect Platform
helping to create breakthrough products from the inside out
helping to create breakthrough products from the inside out

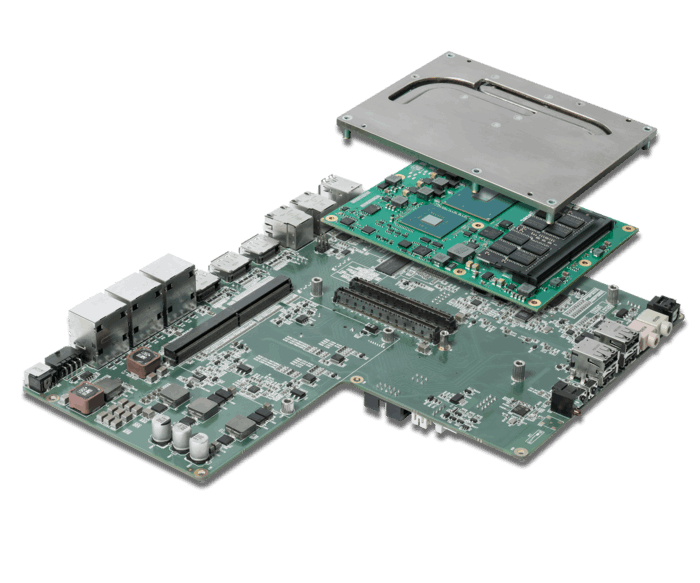

COM Express® is a PICMG® standard that defines a Computer-On-Module, or COM, packaged as a super component. The defined interfaces provide a smooth transition path from legacy interfaces to modern differential signals. This includes DisplayPort, PCI Express®, USB 3.0 and Serial ATA. congatec is specification editor for the most recent revision 3.0 of this PICMG® standard. This version includes the new Type 7 definition which extends the use for COM Express modules to server class applications.

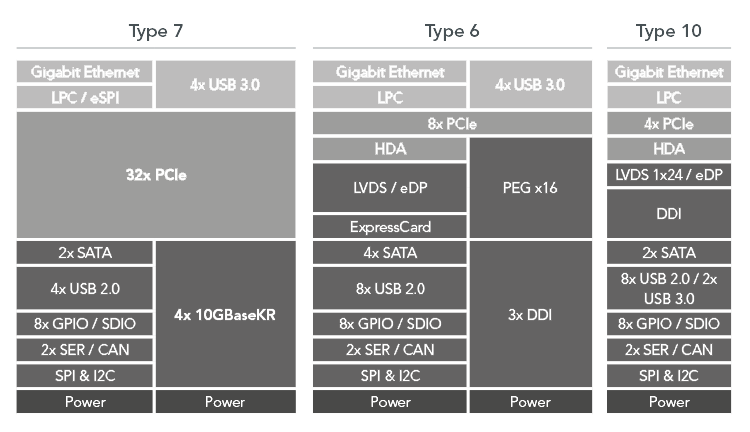

The new Type 7 is not a replacement for the well-established Type 6 pinout. It trades all audio and video interfaces for four 10G Ethernet ports and a total of 32 PCI Express lanes in order to support enhanced micro servers and other server Type applications that only allow for low power consumption but require high computing performance and communication throughput.

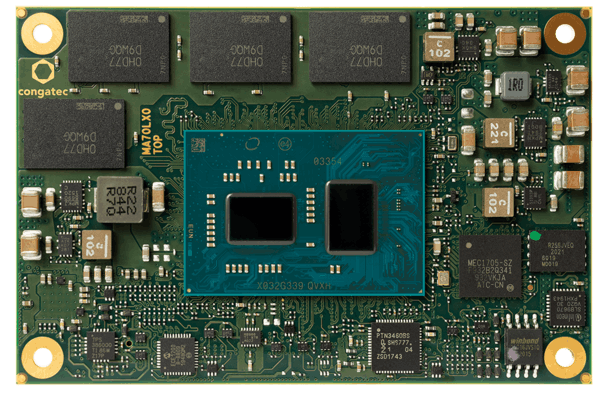

German module expert congatec presents a small COM Express Computer-on-Module (COM) in the Mini form factor. Equipped with the new Intel Atom and Intel Celeron processors (codename Bay Trail) and thanks to their low power draw, the modules are ideal for x86-based mobile and semi-stationary applications in medical technology and industrial automation.The conga-MA3E now offers designers the safety and security of error correction code, often referred to as ECC memory, on a COM Express Mini Type 10 module.
congatec COM Express Type 6 Reference Design

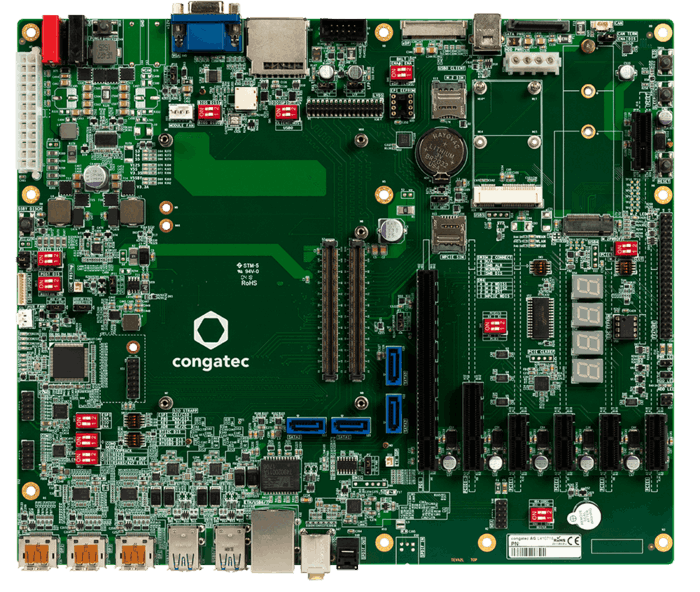

To achieve a quick start with COM Express® congatec offers an evaluation carrier board, which routes all the COM Express® signals to standard interface connectors. Supports COM Express® Compact and Basic modules using connector Pinout Type 6.
conga-TEVAL: Evaluation Carrier Board for COM Express® Type 6 modules.
COM-HPC will not replace COM Express.
It extends the Computer-On-Module concept to a full featured Server-On-Module.
COM Express® standardised form factors and pin-outs for Computer-on-Modules. Congatec provide solutions for Type 10, Type 6 and Type 7.
SMARC ("Smart Mobility ARChitecture") is a small form factor module targeting applications that require low power, high performance.
Qseven, a computer-on-module form factor, used in a design application and is limited to very low power consuming CPUs.
Case Study
Ultrasound-guided navigation for the placement of needles and cannulas
Whitepaper
The embedded computing industry is about to launch COM-HPC.
News
congatec technology makes healthcare smarter
